CONTINUOUS BELT DRYER FOR EVAPORATION
AND DRYING AFTER WET LACQUER COATING
BELTROTHERM CONTINUOUS BELT DRYER FOR EVAPORATION AND DRYING AFTER WET LACQUER COATING
All colors, lacquers and products applied by wet coating process are dried in horizontal continuous process single or double-sided.

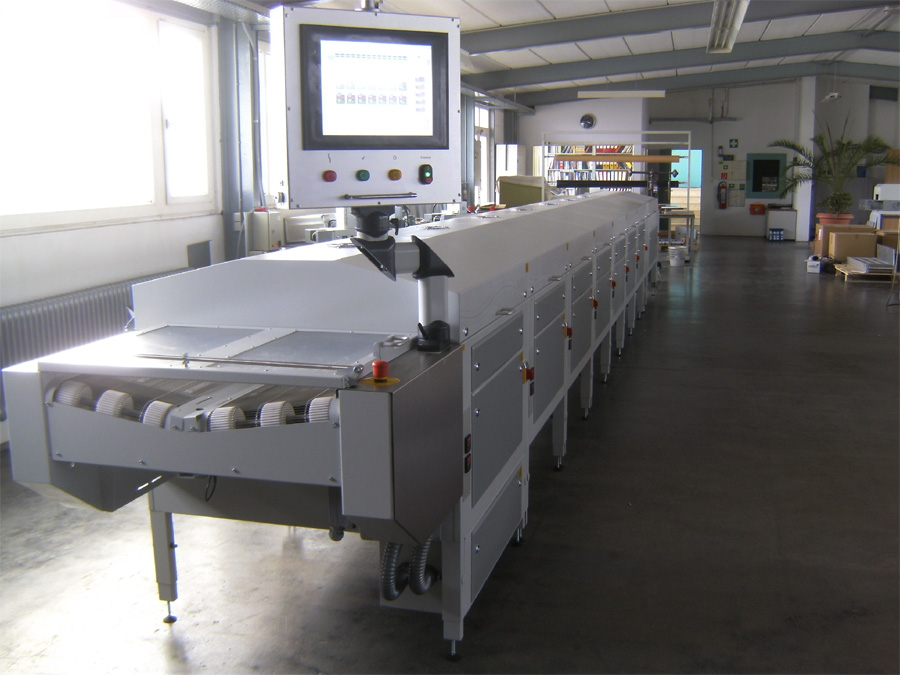

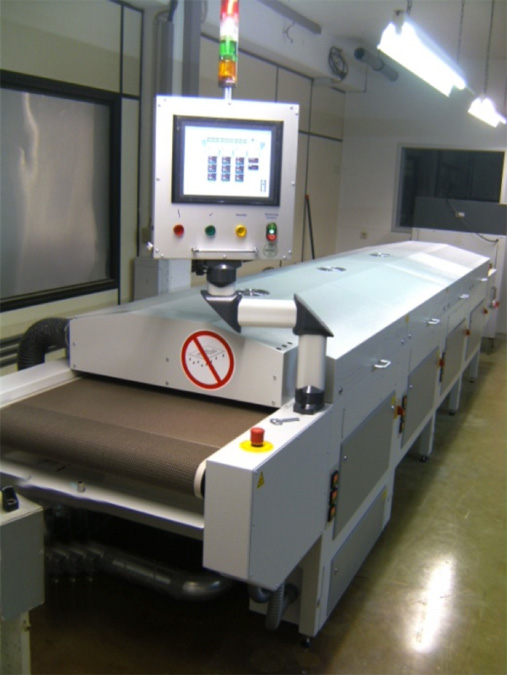

Type of heat sources, air flow, temperature, evaporation and drying times to be adapted to the requirements. The resulting temperature profiles and belt speed is stored in the PLC - control. For the one-sided process there are flat belt transport systems, for double-sided process V-belt transport systems available.
Our Technology and Sales-Partner in Electronic Industry
ahk GmbH · Gewerbering 8 - 13 · 74193 Schwaigern · Germany
Tel.: +49 (0)7138 - 81274-0 · Fax: +49 (0)7138 - 81274-10
Email: info@ahk-service.de · Internet: www.ahk-service.de
Details of our high-performance
Thermo Dryer Beltrotherm:
+ Ballast ( 100% and 50% adjustable)
+ UV lamp with or without
pneumatic shutter
+ Air-coded housing with
aluminium reflector
Details BELTRON
Thermo Dryer
BeLtrotherm Details of our
high-performance
Thermo Dryer Beltrotherm
Beltron Thermo Dryer Beltrotherm have many key benefits for you and your production, take advantage of our quality benefits:
+ over 55 Years quality "Made in Germany"
+ Innovative UV technology
+ Complete, even drying
+ Very short drying times
+ Sustainable energy-saving systems
+ Further processing possible immediately
+ Highly scratch-resistant and shiny
+ Durable & increased chemical resistance
BELTRON Thermo Dryer Beltrotherm
are used successfully in:
+ printing industry
+ electronic industry
+ plastic industry
+ textile industry
+ packaging industry
+ glass industry
advantage BELTRON
Thermo Dryer
Beltrotherm Advantages of our
high-performance
Thermo Dryer Beltrotherm
applications BELTRON
Thermo Dryer
BeLtrotherm Uses of our
high-performance
Thermo Dryer Beltrotherm
The Thermo-Dryer BELTROTHERM are used successfully in:
These are just a few examples from the various partner portfolio of Beltron.
- printing industry
- electronic industry
- plastic industry
- textile industry
- packaging industry
- automotive industry
- glass industry
Working widths: 610 mm / 24" or 760 mm / 30"
Belt speed: adjustable
Tack drying soldermask: 0,5 - 50,0 m/min.
Curing soldermask: 0,2 - 2,0 m/min.
Curing paste: 0,5 - 5,0 m/min.
Temperature range: RT - 250°C
Electrical connection: 400 V 3/N/PE 50 Hz
Connecting power per module: 9,3 kW / 18,6 kW
Working power per module: 4,6 kW / 9,3 kW
Supply air, exhaust air per Module 100 - 300 m³/h
Module length: 1000 mm
Module width: 1000 mm
Module height: 1200 mm
Available modules:
tranquilizers module
Abdunstmodul
heating module
cooling module
Inlet / outlet, various
PLC control: In the mobile console with touch-screen screen
