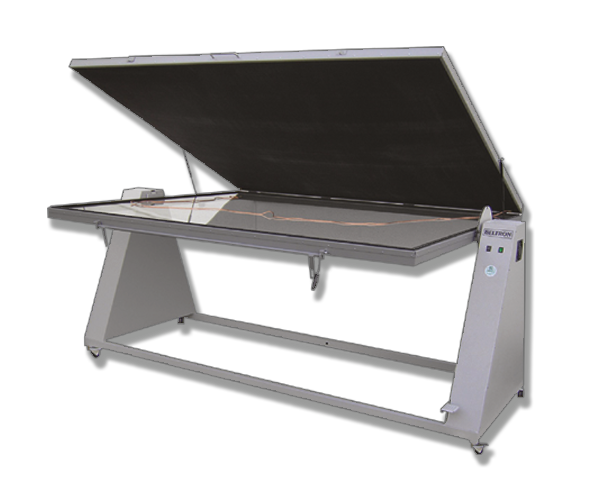

Screen Printing-Vacuum-Copying Frame
Vakucop S
Application:
For exposure of screen printing frames from above or from the side.
Design:
Copying frame suitable for horizontal or vertical copying of screen frames. Highly elastic rubber cover, diamond-coated surface with
2 or 4 suction nozzles (depending on screen frame format) and anti-static discharge.
Glass pane made of streak-free ESG safety glass. Gas pressure-spring supported upper frame, with quick-release fastener. With turning device and foot lever for quick and easy positioning alteration of the copying frame. The copying frame can be swivelled by 360° so that exposure is possible from both sides. Complete with powerful electric vacuum pump and automatic vacuum control.
Also with two pumps for quicker vacuum build-up on request. Control panel with main switch, exposure control, vacuum meter and vacuum reducing valve.
| Our partner in the screen printing industry |
||
|
Maschinenbau Bochonow GmbH Tel +49 - 6054 - 9097416 E-Mail: info (at) bochonow.de |
|
Details of our high-performance
Screen Printing Vacuum Copying Frame Vakucop S:
+ Ballast ( 100% and 50% adjustable)
+ UV lamp with or without
pneumatic shutter
+ Air-coded housing with
aluminium reflector
Details BELTRON
Screen Printing-Vacuum
Copying Frame
VAKUCOP S
Details of our
high-performance
copying equipment
Beltron copying devices have many decisive advantages for you and your production, benefit from our quality advantages:
+ Over 55 Years of quality "Made in Germany"
+ For exposure of screen printing frames
+ Complete, uniform exposure
+ Very short exposure periods
+ Sustainable energy-saving systems
+ additional processing immediately possible
+ Highly scratch-resistant and glossy
+ Durable & increased chemical resistance
BELTRON Screen Printing Vacuum Copying Frame Vakucop S
are used successfully in:
+ printing industry
+ electronic industry
+ plastic industry
+ building materials industry
+ textile industry
+ packaging industry
+ pharmaceutical industry
+ automotive industry
+ glass industry
+ engineering
Advantage BELTRON
Screen Printing-Vacuum
Copying Frame
VAKUCOP S
Advantages of our
high-performance
copying equipment
Applications BELTRON
Screen Printing-Vacuum
Copying Frame
VAKUCOP S
Uses of our
high-performance
copying equipment
Control panel
with main switch, exposure control, vacuum meter and automatic vacuum control
The frame
can be turned 360°
ESG glass
ESG glass
- streak-free ESG glass
Frame
- can be turned 360°
Control panel
- with main switch
- exposure control
- vacuum meter
- automatic vacuum control
+
Screen Printing Vacuum Copying Frame Vakucop S
Detail 1
+
Screen Printing Vacuum Copying Frame Vakucop S
Detail 2
+
Screen Printing Vacuum Copying Frame Vakucop S
Detail 3
+
Screen Printing Vacuum Copying Frame Vakucop S
Detail 4
Art.-No.:
52.014
52.017
52.029
52.031
Special Sizes on request
max. screen frames in mm
900 x 1050
1200 x 1450
1300 x 1650
1700 x 2050
Options:
Art.-No.:
60.027
60.036
Description
insertion lamp, yellow
supplementary vacuum pump for rapid vacuum
with largesized frames
Exposure recommendation:
Our energy-saving, environmentally friendly flash-start copying lamp, BELTROLUX D 3000 W or 5000 W model with BELTROMAT 8100 controlling computer.
The Screen Printing-Vacuum-Copying Frame VAKUCOP S is used successfully in:
These are just a few examples from the various partner portfolio of Beltron.
- printing industry
- electronic industry
- packaging industry
- pharmaceutical industry
- engineering
