Application:
UV drying hardens dyes, inks, printing inks, coatings, adhesives and other UV-sensitive materials by utilising polymerisation instead of volatilisation of solvents. Until now, conventional UV lamps containing mercury have been utilised for hardening processes. Meanwhile the more efficient, more environmentally friendly UV LED technology has now created a tried and tested and superior alternative. Unlike mercury vapour lamps, LED hardening utilises semiconductor-based LEDs to generate ultraviolet (UV) light. BELTRON relies on the advantages of UV LED technology with maximised performance capabilities, reliability and UV energy.

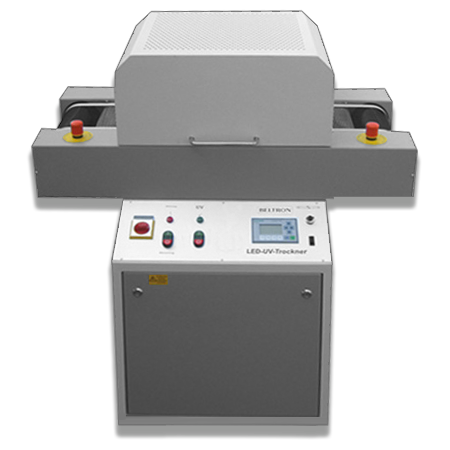

UV-LED dryer
BE 20
Design:
The complete, ready to operate device is equipped with a UV LED irradiation unit. Since the heat generated by UV LED irradiation is only 1/10 of the heat generated by conventional UV irradiation, the cooling and exhaust fans are thereby smaller and consume correspondingly less electricity. The plant is designed for a printing area with a 200 mm working width. The lamp can be switched on and off immediately so that no quick-closing fastener is required in production use. The UV power is adjustable in a range of 20-100%.
Details Beltron
UV-LED dryer BE 20:
+ Conveyor belt
+ Light source
+ Compact control (standard)
Details BELTRON
UV-LED dryer BE 20
Details of our
high-performance
UV-LED dryer BE 20
Beltron UV-LED dryers have many
key benefits for you and your production, take advantage of
our quality benefits:
+ Over 55 Years of quality "Made in Germany"
+ Innovative UV technology
+ Complete, uniform UV hardening
+ Very short hardening times
+ Sustainable energy saving systems
+ Additional processing immediately possible
+ Highly scratch-resistant and glossy
+ Durable & increased chemical resistance
Beltron UV-LED dryers BE 20
are used successfully in:
+ printing industry
+ electronic industry
+ plastic industry
+ building materials industry
+ textile industry
+ packaging industry
+ pharmaceutical industry
+ automotive industry
+ glass industry
+ engineering
advantage BELTRON
UV-LED dryer BE 20
Advantages of our
high-performance
UV-LED dryer BE 20
applications BELTRON
UV-LED dryer BE 20
Uses of our
high-performance
UV-LED dryer BE 20
Conveyor belt
Compact control (standard)
Light source
Conveyor belt
- Teflon belt
Light source
- LED Light source
- height adjustable
with High-Tech-Micro-Optic
Compact control (standard)
- UV output in the range 20 - 100%
infinitely variable - Digital belt speed indicator
+
UV-LED dryer BE 20
Detail 1
+
UV-LED dryer BE 20
Detail 2
+
UV-LED dryer BE 20
Detail 3
+
UV-LED dryer BE 20
Detail 4
Wave length: 365 nm, 395 nm
UV-LED-Power: 1 - 12 W/cm²
Radiation width: up to 200 mm
Length: 1100 mm
Depth: 1000 mm
Height: 1200 mm
Conveyor belt width: 225 mm
Conveyor belt speed: 0,5-12 m/min
Electrical supply: 230V / 50 Hz
CE-Sign
The UV-LED dryer BE 20 are used successfully in:
- printing industry
- electronic industry
- plastic industry
- building materials industry
- textile industry
These are just a few examples from the various partner portfolio of Beltron.
- packaging industry
- pharmaceutical industry
- automotive industry
- glass industry
- engineering
This device is equipped with a LED module from Phoeseon
Advice to UV-LED dryer BE 20:
Phone: +49 6074 89199-0 or E-Mail: info@beltron.de
