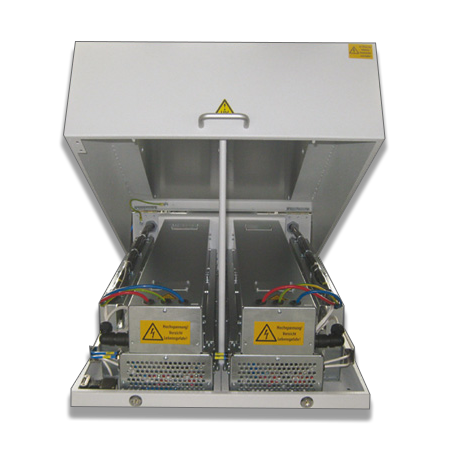

You are here: Beltron GmbH | Products | UV bridges overview | UV bridges with or without shutter
UV bridges
with or without shutter
Application:
Air-cooled UV bridges are suitable for retrofitting into existing printing lines or plants. With a working width of 200 mm - 2000 mm,
the performance of 80 - 120 W/cm available.
Design:
Pneumatic shutter and reduced lamp power in stand-by mode make BELTRON UV bridges to an ecological alternative to the power-hungry UV bridges from other manufacturers.
BELTRON UV bridges can be equipped with a PLC control. This control allows the online performance monitoring of UV lamp which in turn leads to higher production reliability.
Alternatively, the BELTRON UV bridges can be equipped with stepless power control, selective filters (Heat reduction of the product to be fitted) and quartz glass.
Details of our high-performance
UV Bridge with or without shutter:
+ Housing
+ UV lamp
+ Equipped with 1,2 or 3 UV lamps
Details BELTRON
uv bridgeswith or withoutshutter Details of our
high-performance
UV bridges withor without shutter
Beltron UV bridges have many key benefits for you and your production, take advantage of our quality benefits:
+ over 55 Years quality "Made in Germany"
+ Innovative UV technology
+ Complete, even UV-curing
+ Very short curing times
+ Sustainable energy-saving systems
+ Further processing possible immediately
+ Highly scratch-resistant and shiny
+ Durable & increased chemical resistance
advantage BELTRON
uv bridgeswith or withoutshutter Advantages of our
high-performance
UV bridges withor without shutter
BELTRON UV bridges with or without shutter are used
successfully in:
+ printing industry
+ electronic industry
+ plastic industry
+ building materials industry
+ textile industry
+ packaging industry
+ pharmaceutical industry
+ automotive industry
+ glass industry
+ engineering
applications BELTRON
UV bridgeswith or withoutshutter
Uses of our
high-performance
UV bridges withor without shutter
Equipped with 1,2 or 3 UV lamps
UV lamp
Housing
Housing
UV lamp
- Lamp filling:
Hg (Mercury), Fe (Iron),
Ga (Gallium)
Equipped
- with 1,2 or 3 UV lamps
+
UV bridges
with or without shutter
Detail 1
+
UV bridges
with or without shutter
Detail 2
+
UV bridges
with or without shutter
Detail 3
+
UV bridges
with or without shutter
Detail 4
Lamp unit completely ready for installation,
with connection for compressed air
Compact balance, ready for operation
Stepless power regulation by an electronic balance
Compact control with LED-Screen
8 meter cable between switch board and UV-Lamp housing
Lamp filling: Hg (Mercury), Fe (Iron), Ga (Gallium)
Working area from 200 mm to 2000 mm
Electrical supply: 400 V / 50 Hz / 3~
CE-Sign
The UV bridges with or without shutter are used successfully in:
These are just a few examples from the various partner portfolio of Beltron.
- printing industry
- electronic industry
- plastic industry
- building materials industry
- textile industry
- packaging industry
- pharmaceutical industry
- automotive industry
- glass industry
- engineering
