UV hand lamp
Design:

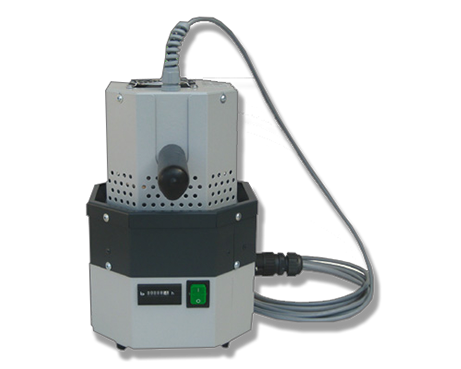

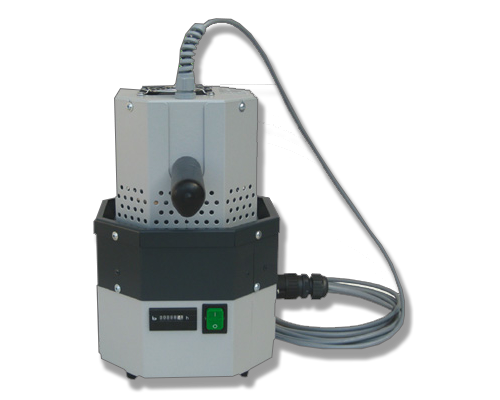

The BELTRON uv hand lamp is a 250W uv lamp with a separate ballast. The uv lamp has high radiated power (800 mW/cm²) and user friendliness. The spotlight remains cool even after hours of use by optimal cooling housing and can be cold in the docking station on the ballast without limitation The docking station is designed so that no stray light comes out and therefore a threat to the user is avoided. The lamp is equipped with iron (Fe), mercury (Hg) or gallium (Ga) radiation and can also be supplied with different filters (eg black filter).
The cable between the lamp and lamp ballast unit has a standard length of 4m. At the base are the main switch, power switch and hour meter.
Details Beltron
UV hand lamp:
+ separate ballast
+ high radiated power (800 mW/cm2)
+ 4 m cable
+ hour meter
Details BELTRON
UV hand lamp Details of our
high-performance
UV special equipment
BELTRON UV hand lamps are used
successfully in:
+ printing industry
+ electronic industry
+ plastic industry
+ building materials industry
+ textile industry
+ packaging industry
+ pharmaceutical industry
+ automotive industry
+ glass industry
+ engineering
Beltron UV special equipment have many key benefits for you and your production, take advantage of our quality benefits:
+ over 55 Years quality "Made in Germany"
+ Innovative UV technology
+ Complete, even UV-curing
+ Very short curing times
+ Sustainable energy-saving systems
+ Further processing possible immediately
+ Highly scratch-resistant and shiny
+ Durable & increased chemical resistance
advantage BELTRON
UV special equipment
Advantages of our
high-performance
UV special equipment
applications BELTRON
UV hand lamp Uses of our
high-performance
UV special equipment
4 m cable
high radiated power (800 mW/cm2)
separate ballast
hour meter
high radiated power (800 mW/cm2)
separate ballast
4 m cable
hour meter
+
UV hand lamp
Detail 1
+
UV hand lamp
Detail 2
+
UV hand lamp
Detail 3
+
UV hand lamp
Detail 4
+
UV hand lamp
Detail 5
Total dimensions: 196 x 196 x 304 mm
Total weight: approx 6 Kg
Weight of lamp: approx 1,5 Kg
Bulb: 250 W (Filling: Fe, Hg or Ga)
Light intensity: approx 800m W/cm²
Curent: 320 W
Filter: WSG, QRZ, SLF
The UV hand lamp are used successfully in:
These are just a few examples from the various partner portfolio of Beltron.
- electronic industry
- pharmaceutical industry
- automotive industry
- glass industry
- engineering
Advice to UV hand lamp:
Phone: +49 6074 - 89199-0 or E-Mail: info@beltron.de
Contactform - UV hand lamp
