Beltron GmbH  UV dryer

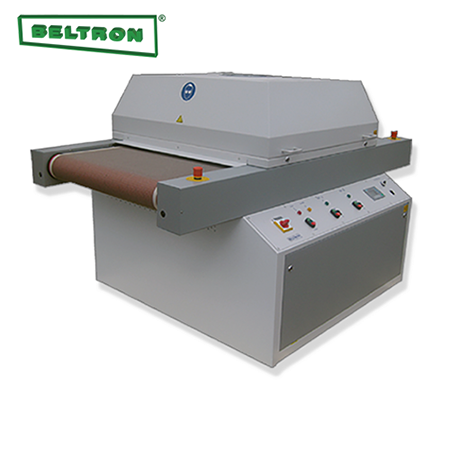

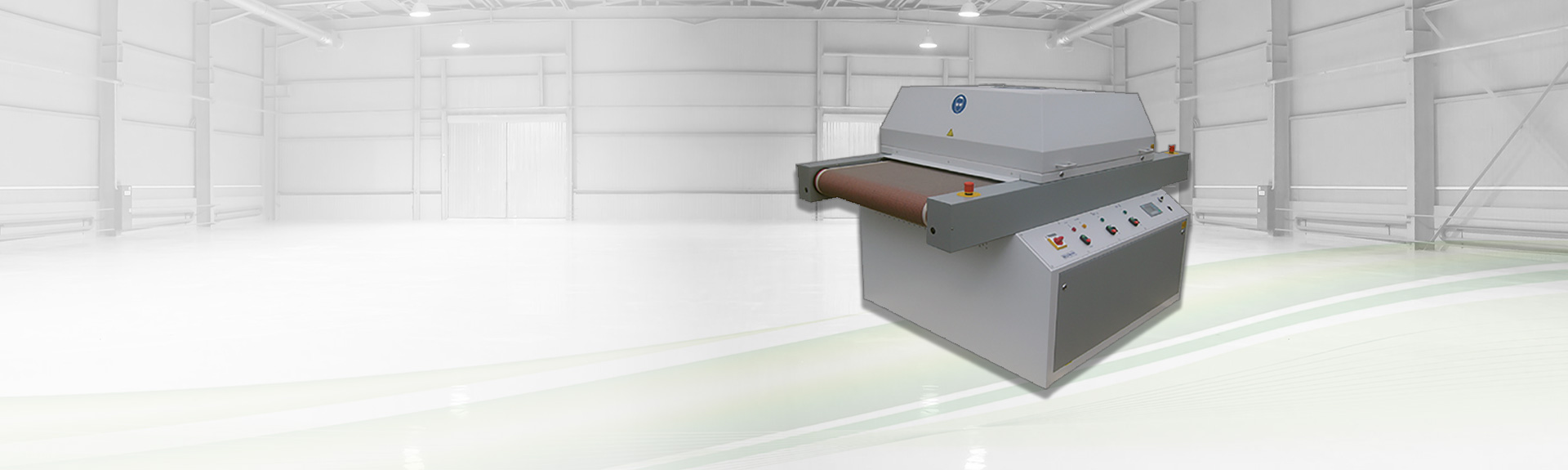

Beltron  One-Sided continous-dryer

Beltron  One-Sided continous-dryer

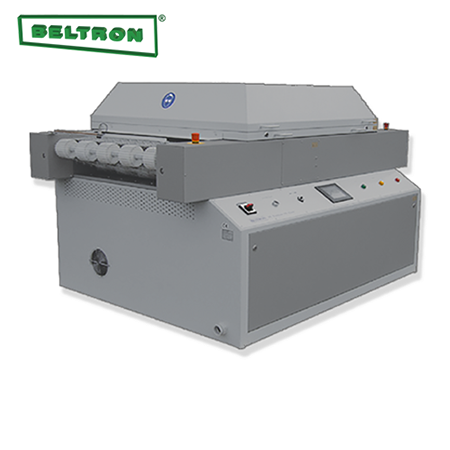

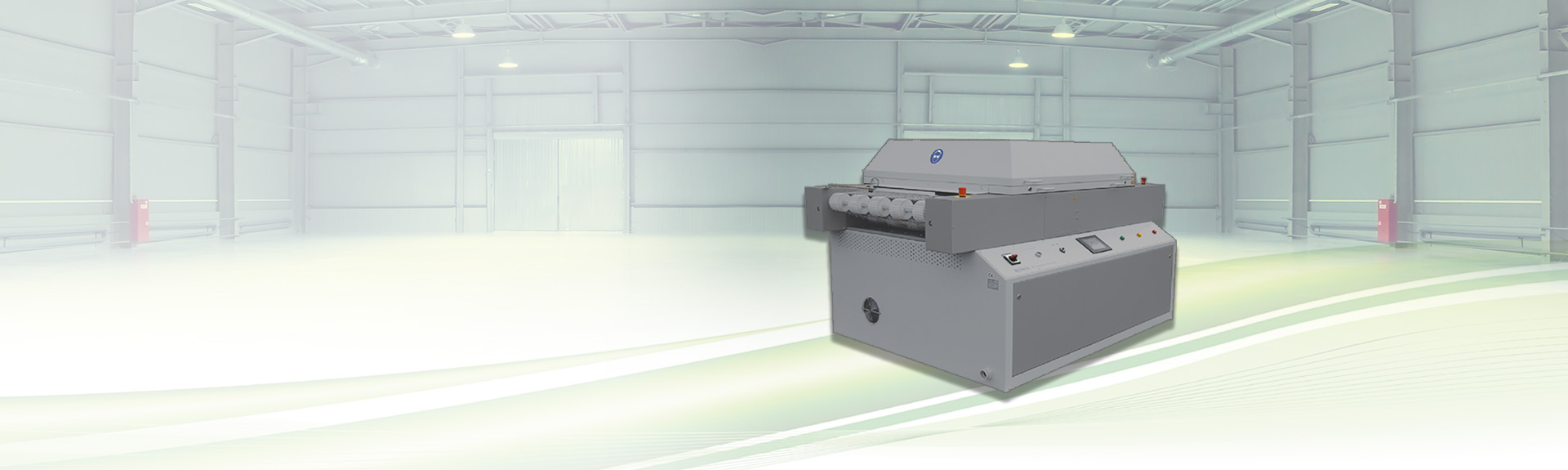

Beltron  Double-Sided continous-dryer

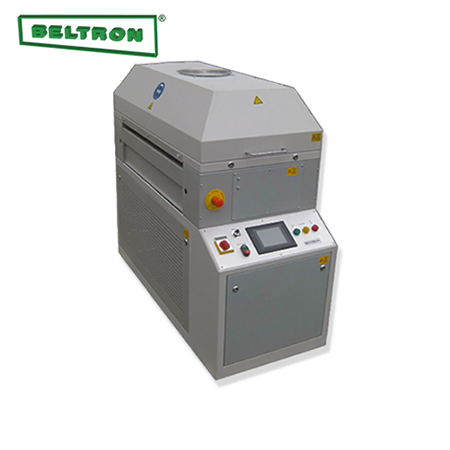

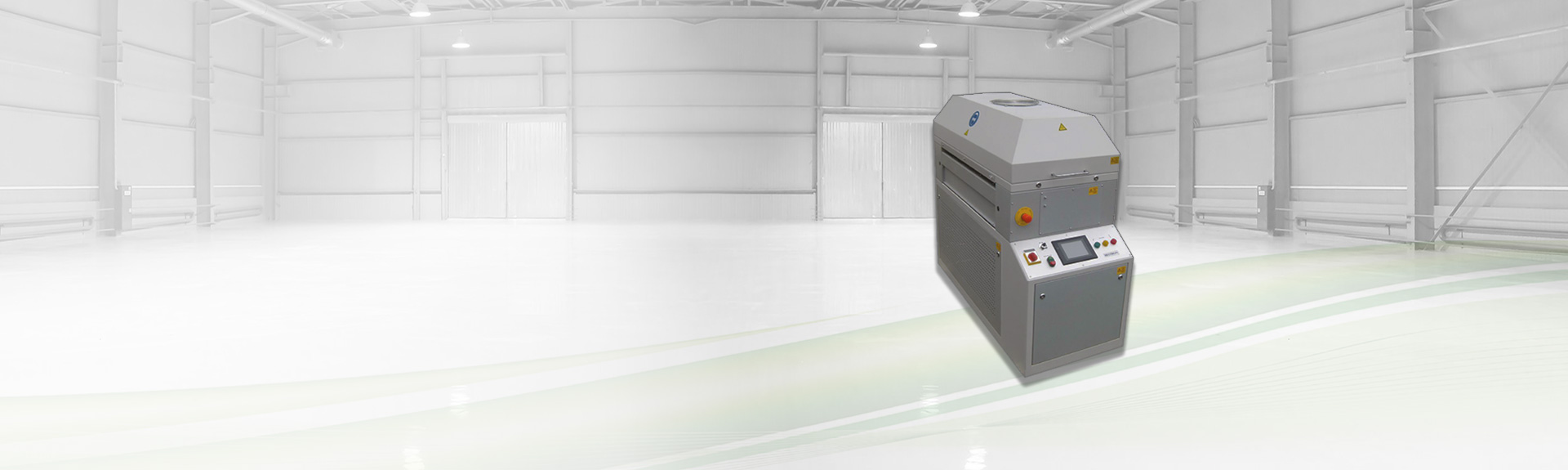

Beltron  UV dryer Slimsize

Beltron  Double-Sided continous-dryer Beltron  UV dryer Slimsize

Application:

For drying and polymerization of uUV screen inks, UV adresives, for printed circuit boards, laminated materials, plastic, paper, glass, metal and other printed materials in flow process. Machines of BE type can be delivered with working width of 35 to 260 cm and lamp power of 80 to 120 W/cm and can be equipped with 1 to 3 bulps...

Application:

Uv curing and uv post-polymerisation of photoimageable soldermask on printed circuit boards and flex-boards.



Advantages:

The developed soldermask will be final UV cured in addition to the final thermal curing process. The post- polymerisation process improves the surface characteristics of the solder mask regarding resistance to chemicals in the nickel gold bath, during hot air leveling, in chemical or galvanic tin bath along with the electric surface properties...





Application:

The Slimsize UV dryer is ideal for use in existing systems and is suitable for products such as paper, cardboard, foil, glass, circuit boards, plastics, wood and metal. Due to its overall width of only 600 mm it can be integrated in any system concept (also later on).

The UV-dryer is available with one UV lamp or as double-sided UV dryer with one UV lamp above and 1 below the product...





read more...

read more...

read more...

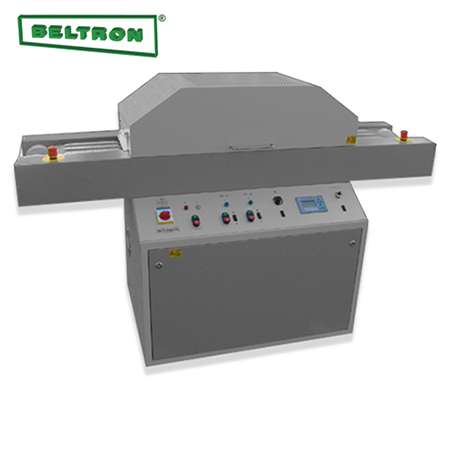

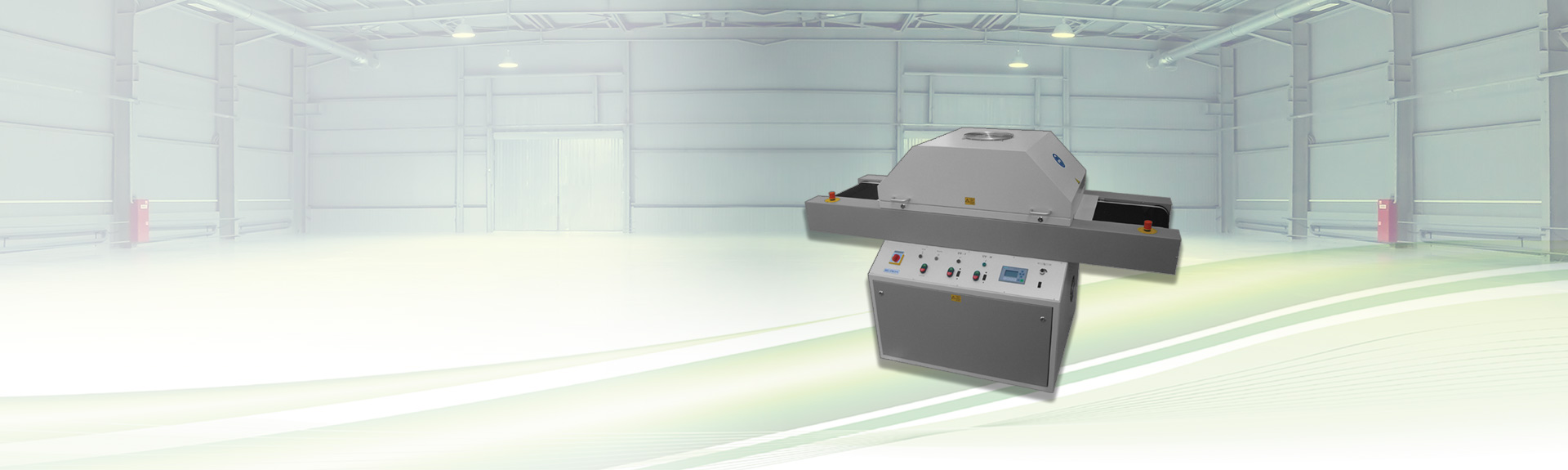

Beltron  UV curing unit BE 35 BETC

Beltron  UV curing unit BE 35 BETC

Application:

For uv curing of conformal coatings and solvent-free thick film lacquers on pcbs or other 3D objects such as: uv thick film lacquers TWIN CURE ® from Peters Lackwerke or Dymax Corp. and other uv products.



Design:

PFT-conveyor belt with suction/cooling system, max. working width 350 mm, max. working height adjustable between 25 and 95 mm, belt speed adjustable in the range of 1:10, i.e. 2-20 m/min, belt speed 0,5 – 12 m/min stepless controllable (other ranges possible)...

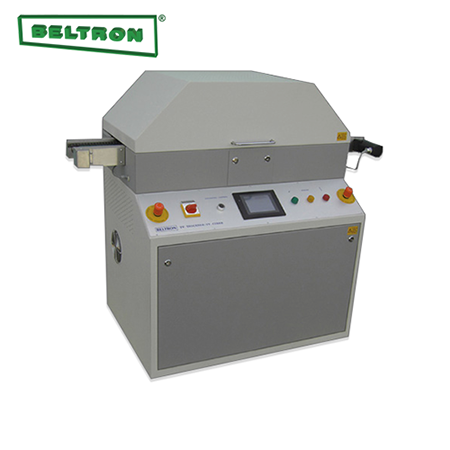

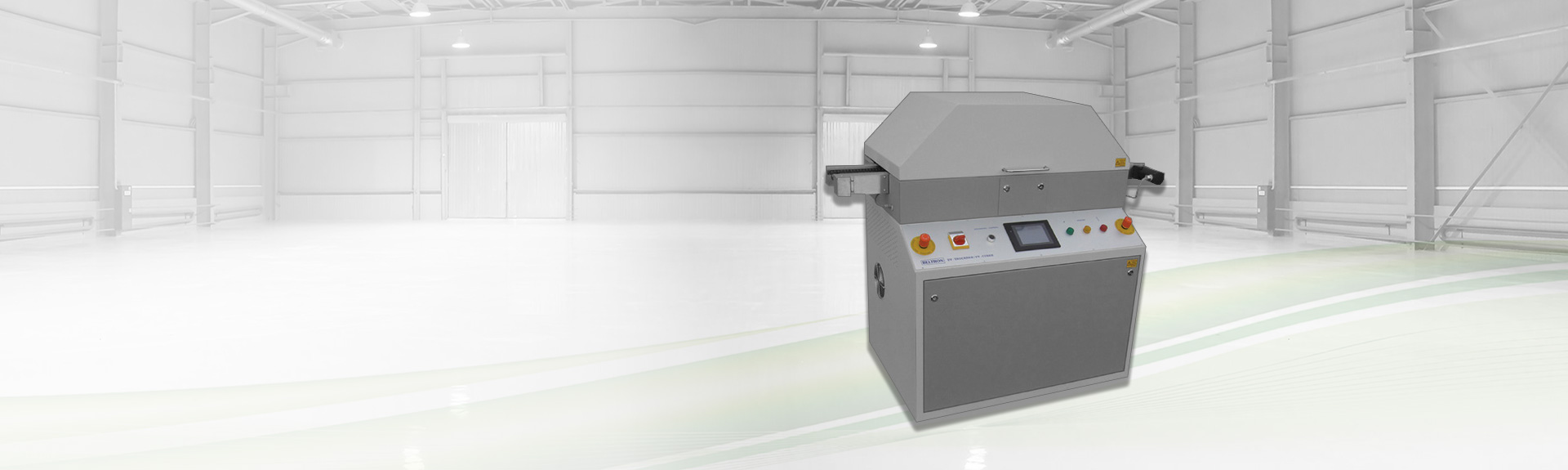

Beltron  UV dryer with Edge Conveyor

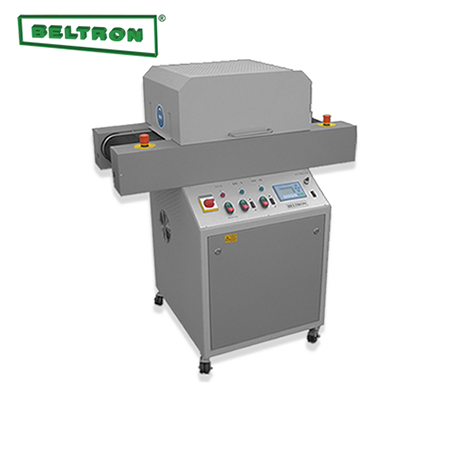

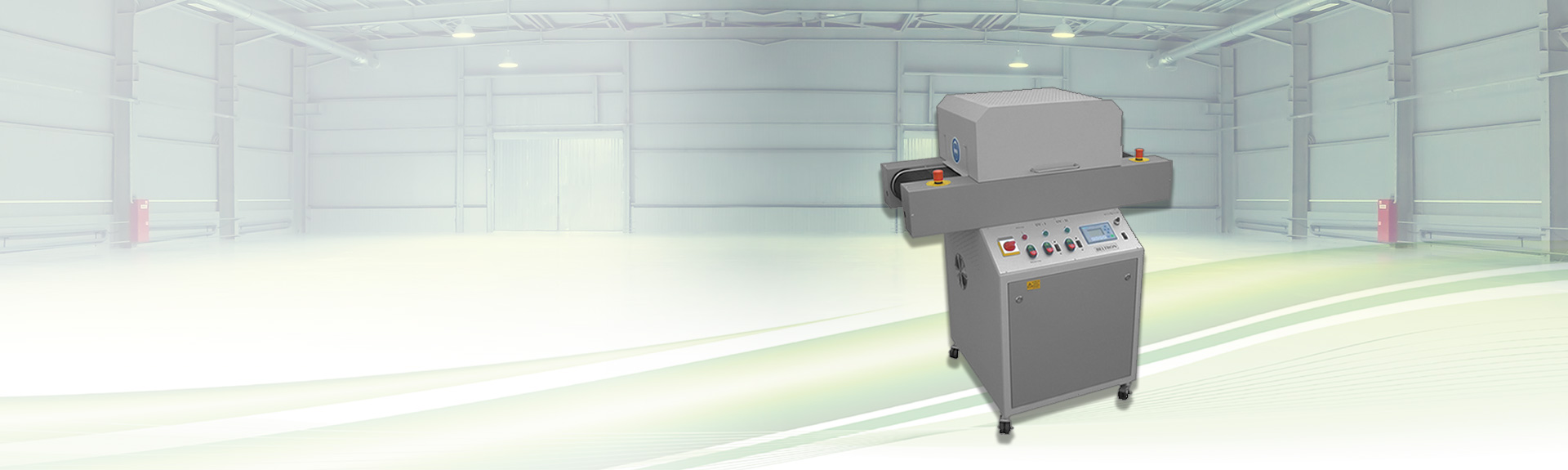

Beltron  UV dryer BE 20

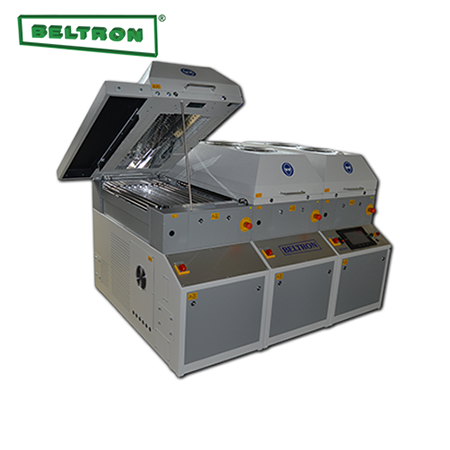

Beltron  UV modul dryer with roll transport

Beltron  UV dryer with Edge Conveyor Beltron  UV dryer BE 20 Beltron  UV-IR dryer BE 20

Application:

UV drying and curing of all UV reactive materials, i.e. conformal coatings, adhesives, resins and UV inks. Useable for stand alone
and inline production.





Design:

The continuously adjustable power control of the lamps between 40 and 100 % UV output enables an optimal adjustment of the UV power ( 500–5000 mJ/cm² ) to the belt speed (0,3 to 3,0 m/min)...

Application:

For drying and polymerization of inks, coatings and adhesives for printed circuit boards, laminated materials, plastic, paper, glass, metal and other printed materials in flow process.



The lamp power lasts from 80 to 120 W/cm and the machines are equipped with 1 or 2 UV lamps. This UV dryers are used for laboratory operation or small size production...



Application:

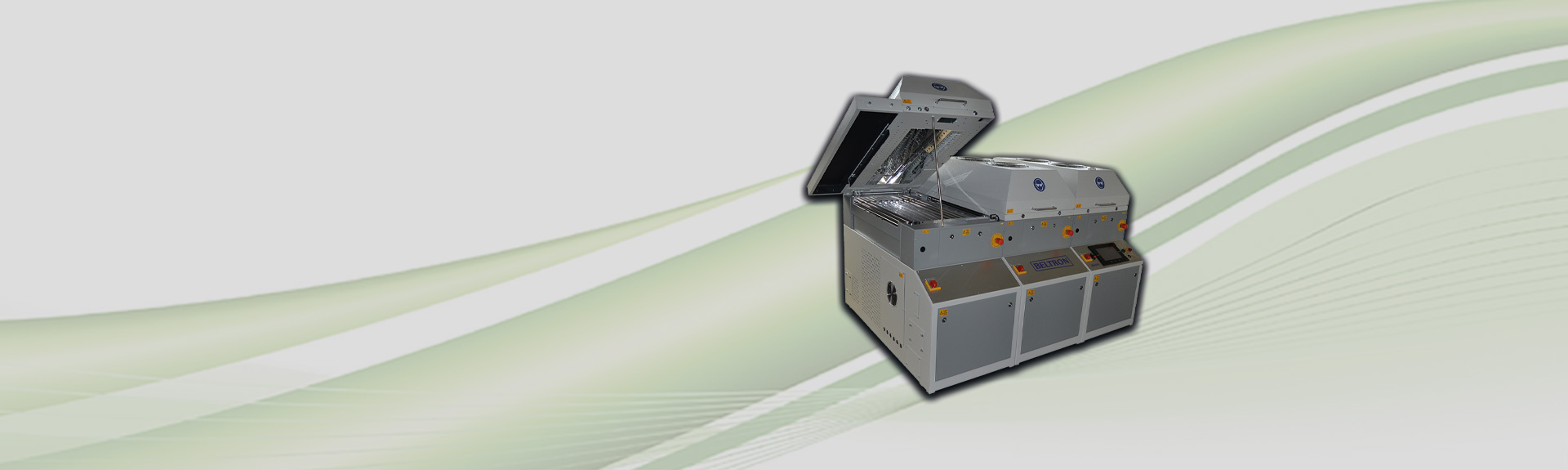

For the first time, Beltron developed a modularly expandable UV dryer with gentle roll transport for your products.



The machine can be equipped with 1.2 or 3 UV lamps, for radiation from above, below or above and below...



read more...

read more...

read more...

read more...

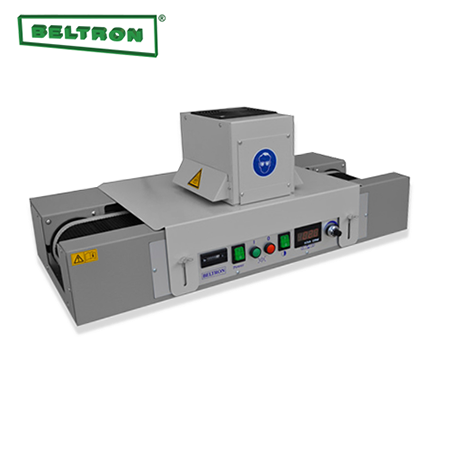

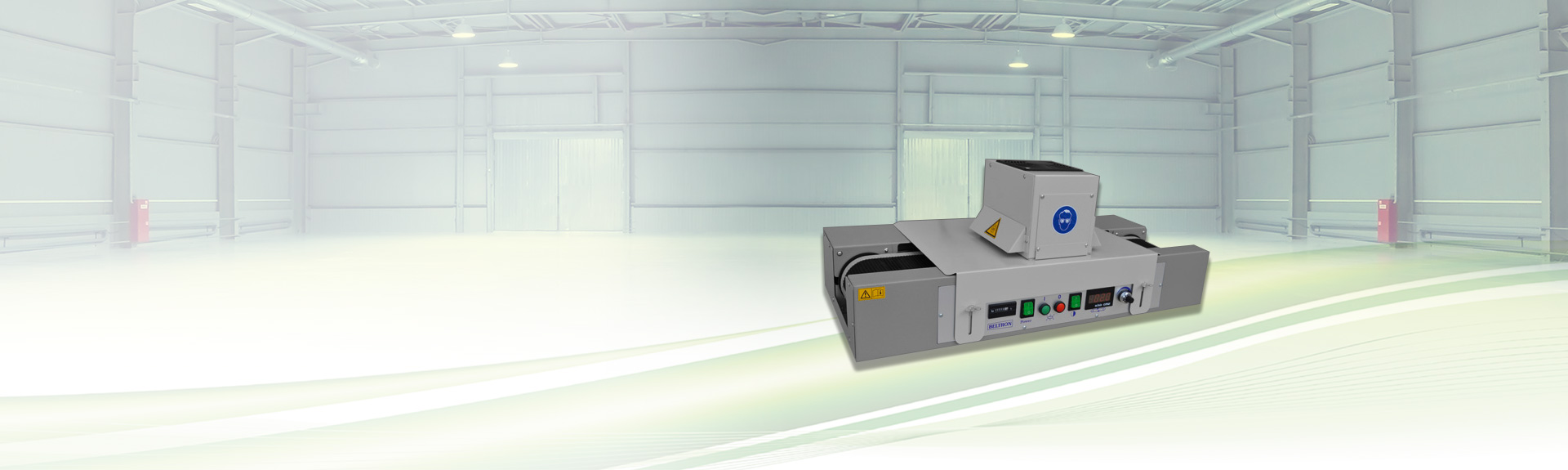

Beltron  UV Minidryer

Beltron  UV Minidryer

Application:

For drying and polymerisation of UV hardening screen printing dyes, inks and UV adhesives, for printed circuit boards, laminated material, plastics, paper, glass, metals and other printing materials in a continuous process...







read more...

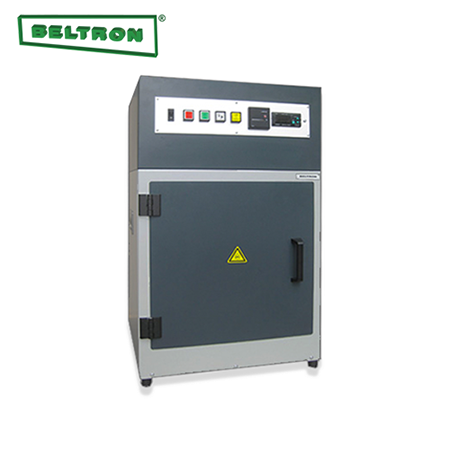

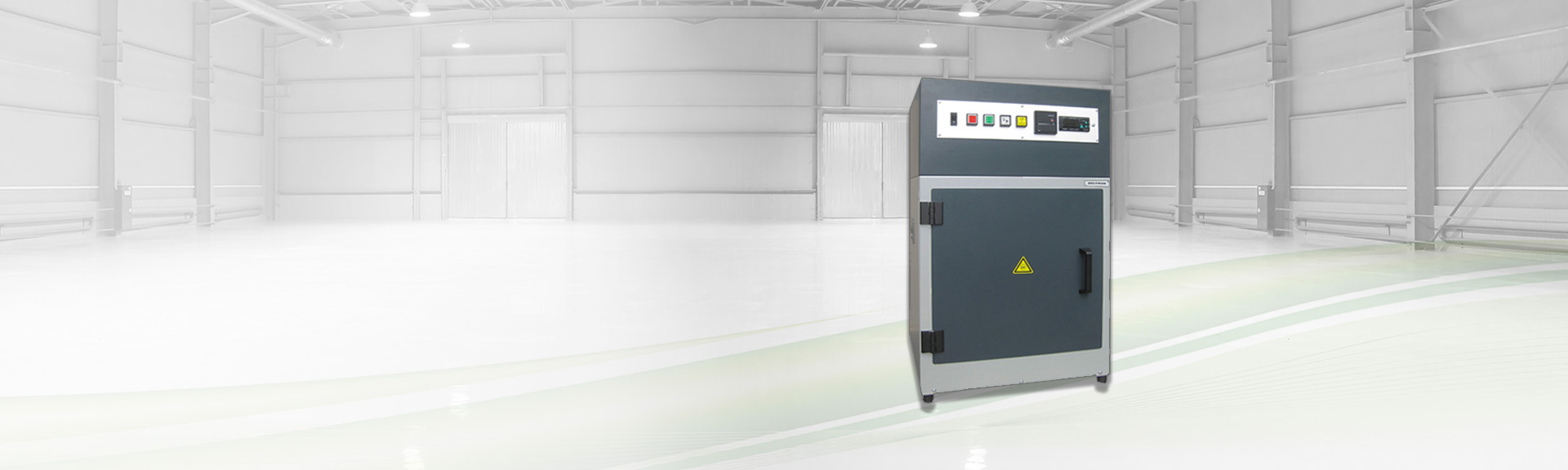

Beltron  UV Chamber

Beltron  UV Chamber

Application:

UV exposure chamber for laboratory and manual production, varying UV emission spectra possible by combining different UV lamps and UV filter discs, automatic electrical lamp shutter with timer, high working safety level by locking the door during exposure and/or the shutter with opened housing door...







read more...

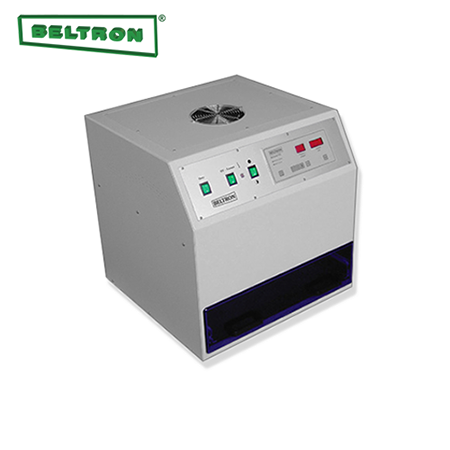

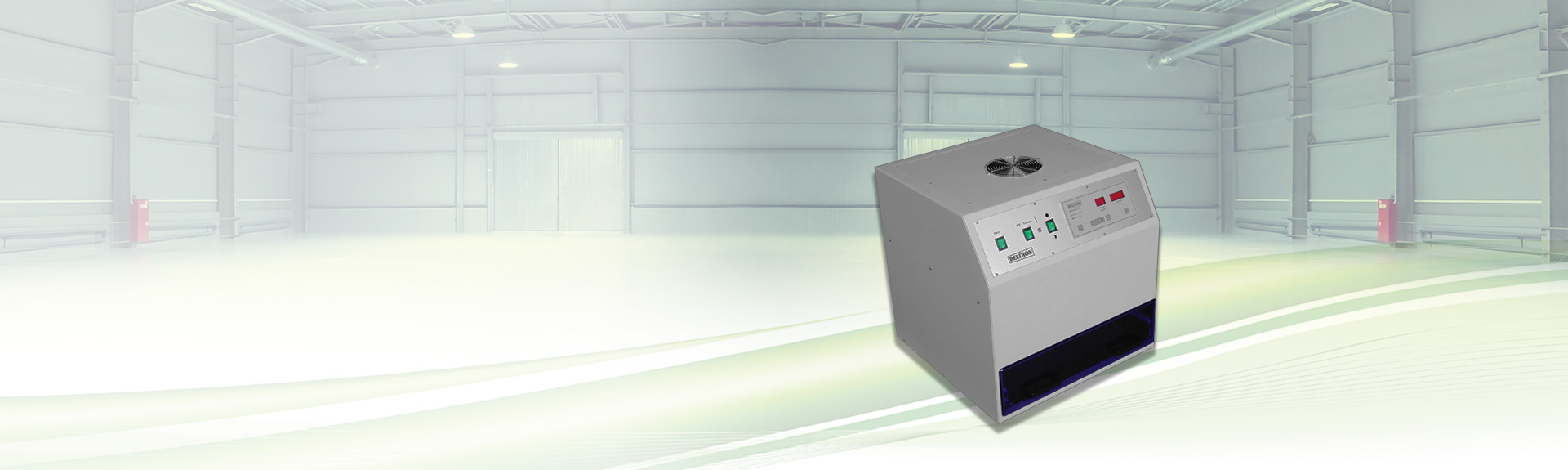

Beltron  Stationary UV dryer BELTROSTAT

Beltron  Stationary UV dryer BELTROSTAT

Application:

The Beltrostat UV dryer is utilised for uniform drying and hardening of UV paintwork and varnishes and is particularly suitable for use in the production of small series, for repairs and in laboratory operation.





The device is optionally equipped with a timer with function buttons or a BELTROMAT control computer...

read more...

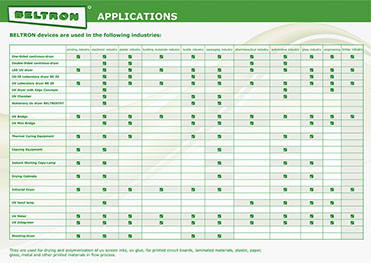

Beltron  Application Chart

BELTRON Equipment used in industry

Overview of the use of our equipment in the industry!

You are drying and polymerization of UV curable screen printing inks and adhesives, for printed circuit boards, laminated material, plastics, paper, glass, metals and other substrates in a continuous process used...



read more...

Beltron  Application Chart

Beltron  UV lamp inquiry

BELTRON - UV lamp inquiry

Contactform to identify your UV lamp...





read more...

Beltron  UV lamp inquiry

Beltron  UV lamp service- and safety-set

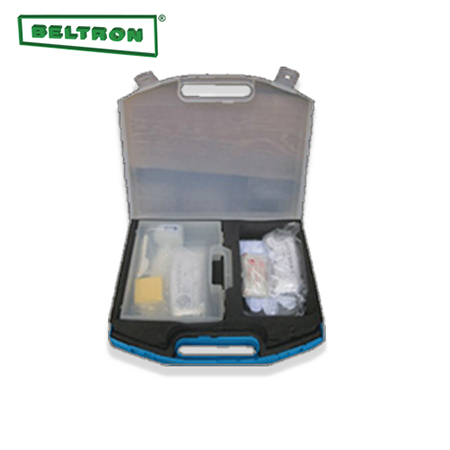

Beltron  UV lamp service- and safety-set

An essential addition to existing maintenance and safety.

All ultra violet lamps contain a small amount of mercury and in accordance with Guidance Note EH17 (revised) ; all users of ultra violet light are advised to have a kit easily accessible located within the factory area where UV equipment is operated. Our uv lamp change and mercury spillage kit has all that is needed, not only to handle the delicate process of lamp changing, but to clean up safely in the event of accidental damage to the lamp. Detailed instructions are included...











read more...

Beltron  PDF catalog UV Dryer

PDF Catalog UV Dryer

Alle -UV-Trockner von Beltron im PDF-Katalog...





read more...

Beltron  PDF catalog UV Dryer

Beltron  PDF Catalog Products

PDF Catalog BELTRON Produkcts

Alle Produkte von Beltron im PDF-Katalog...





Beltron  PDF Catalog LED-UV Dryer

PDF Catalog LED-UV Dryer

Alle LED-UV-Trockner von Beltron im PDF-Katalog...





read more...

read more...

Beltron  PDF Catalog LED-UV Dryer Beltron  PDF Catalog Products
