Beltrotherm
Thermal curing equipment
BELTROTHERM
Thermal curing equipment
For the production of PCB's, membran switches, scales, panels by phototechnique or screen printing.
Application:
Predrying and curing of photosensitive inks and soldermasks -single or double sided- on flat or V-belt transport system, curing of conductive carbon, silver, copper inks, two component inks as well as all thermal drying inks.
Beltrotherm
The Miracle of fast Curing

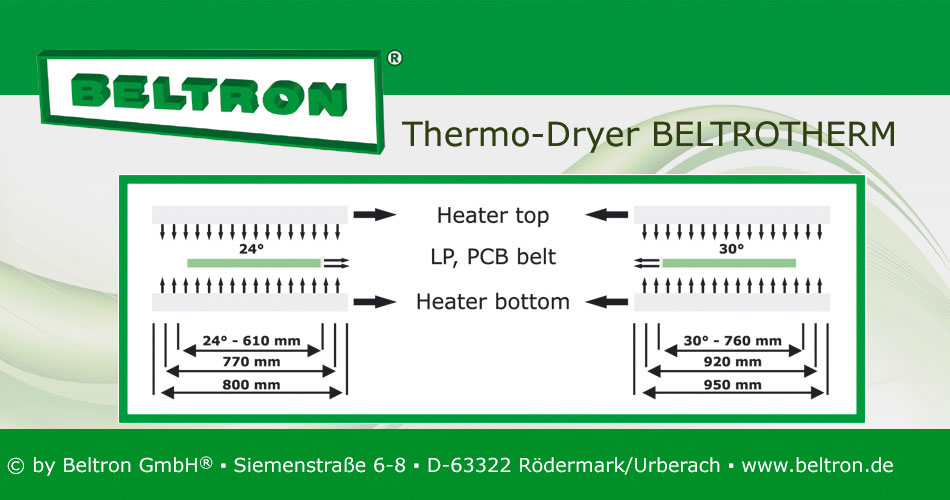

Same IR-radation and convectional heat from above and/or below to each board due to selected temperature profile.
Beltrotherm
The Curing System
Application:
Production of PCB´s, Flex-Boards, Membran Switches, Graphic and Technical Products i.e. Tack Drying and Final Curing of Photoimageable Soldermask, Curing of Carbon-, Silver-, Copper- and Heatsink-Paste, Curing of Two Pack Inks, Resins, Isolation Materials and all thermal curing materials.
Technology:
Curing is realized by a combination of long wave IR-radiation with circulating hot air. A conveyorised flat belt system moves each board through the temperature profile. The boards are cured doublesided. The curing times could be reduced to about 1/6
of the curing time in a batch oven.
- Final curing of photoimageable soldermask in about 8-10 minutes.
- Tack drying of photoimageable soldermask in about 4-5 minutes.
- Curing of Carbon-, Silver-, Copper-, Heatsink-Paste in about 1-3 minutes.
Control:
A PLC-Control with a Touch Screen Panel controls and monitors all functions. 10 programs could be saved and print function meets te requirement of process control.
Beltrotherm

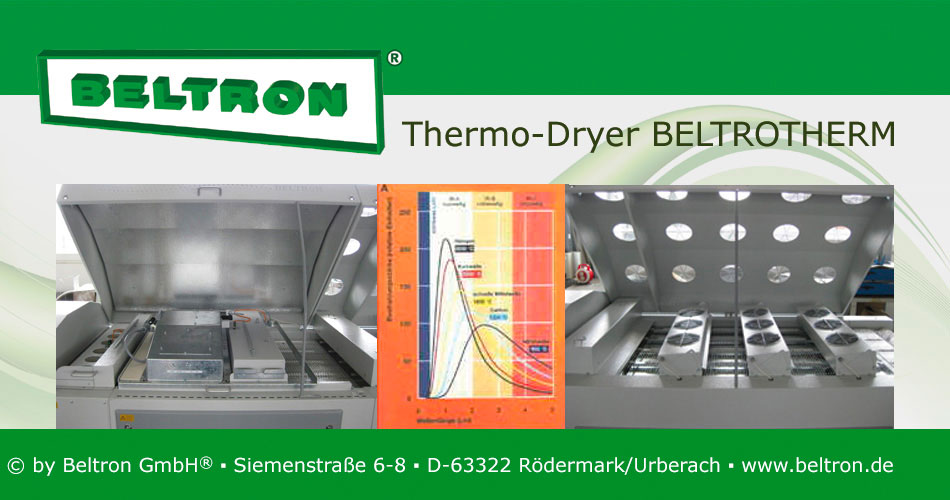

IR - spectrum of the ceramic heater
The ceramic-heaters in the opened curing channel: 3 above and 3 below the belt.
Distribution of a black body to the wave lenght:
At a temperature of 300° C = 573°K a wave lenght will be produced of λ max. = 2900/573 = 5 μm
Our Technology and Sales-Partner in Electronic Industry
ahk GmbH · Gewerbering 8 - 13 · 74193 Schwaigern · Germany
Tel.: +49 (0)7138 - 81274-0 · Fax: +49 (0)7138 - 81274-10
Email: info@ahk-service.de · Internet: www.ahk-service.de
Details of our high-performance
Thermo Dryer Beltrotherm:
+ Ballast ( 100% and 50% adjustable)
+ UV lamp with or without
pneumatic shutter
+ Air-coded housing with
aluminium reflector
Details BELTRON
Thermo Dryer
BeLtrotherm Details of our
high-performance
Thermo Dryer Beltrotherm
Beltron Thermo Dryer Beltrotherm have many key benefits for you and your production, take advantage of our quality benefits:
+ over 55 Years quality "Made in Germany"
+ Innovative UV technology
+ Complete, even UV-curing
+ Very short curing times
+ Sustainable energy-saving systems
+ Further processing possible immediately
+ Highly scratch-resistant and shiny
+ Durable & increased chemical resistance
BELTRON Thermo Dryer Beltrotherm
are used successfully in:
+ printing industry
+ electronic industry
+ plastic industry
+ textile industry
+ packaging industry
+ glass industry
advantage BELTRON
Thermo Dryer
Beltrotherm Advantages of our
high-performance
Thermo Dryer Beltrotherm
applications BELTRON
Thermo Dryer
BeLtrotherm Uses of our
high-performance
Thermo Dryer Beltrotherm
The Thermo-Dryer BELTROTHERM are used successfully in:
These are just a few examples from the various partner portfolio of Beltron.
- printing industry
- electronic industry
- plastic industry
- textile industry
- packaging industry
- automotive industry
- glass industry
Working widths: 610 mm / 24" or 760 mm / 30"
Belt speed: adjustable
Tack drying soldermask: 0,5 - 50,0 m/min.
Curing soldermask: 0,2 - 2,0 m/min.
Curing paste: 0,5 - 5,0 m/min.
Temperature range: RT - 250°C
Electrical connection: 400 V 3/N/PE 50 Hz
Connecting power per module: 9,3 kW / 18,6 kW
Working power per module: 4,6 kW / 9,3 kW
Supply air, exhaust air per Module 100 - 300 m³/h
Module length: 1000 mm
Module width: 1000 mm
Module height: 1200 mm
Available modules:
tranquilizers module
Abdunstmodul
heating module
cooling module
Inlet / outlet, various
PLC control: In the mobile console with touch-screen screen
