Double-Sided
continous-dryers
Application:
Uv curing and uv post-polymerisation of photoimageable
soldermask on printed circuit boards and flex-boards.
Advantages:
The developed soldermask will be final UV cured in addition to the final thermal curing process. The post- polymerisation process improves the surface characteristics of the solder mask regarding resistance to chemicals in the nickel gold bath, during hot air leveling, in chemical or galvanic tin bath along with the electric surface properties. Exposure time can be reduced to a minimum because the final properties are realized by UV polymerisation.
Details Beltron
Double-sided continous-dryer:
+ cooling system
+ conveyor belt with or without peaks
+ PLC control (optional)
+ Compact control (standard)
Details BELTRON
Double-Sided
Continous-Dryer Details of our
high-performance
Double-sided
continous-dryers
Beltron UV dryers have many key benefits for you and your production, take advantage of our quality benefits:
+ over 55 Years quality "Made in Germany"
+ Innovative UV technology
+ Complete, even UV-curing
+ Very short curing times
+ Sustainable energy-saving systems
+ Further processing possible immediately
+ Highly scratch-resistant and shiny
+ Durable & increased chemical resistance
Beltron Double-Sided
continous-dryers
are used successfully in:
+ electronic industry
+ plastic industry
+ pharmaceutical industry
+ automotive industry
advantage BELTRON
Double-Sided
Continous-Dryer Advantages of our
high-performance
Double-sided
continous-dryers
applications BELTRON
Double-Sided
Continous-Dryer
Uses of our
high-performance
Double-sided
continous-dryers
Conveyor belt
PLC control (optional)
Compact control
(standard)
Cooling system
Conveyor belt
- Metal with or without peaks
Cooling system
- standard
PLC control (optional)
- Touchscreen with color display
clear display of the system status - Online UV power meter
- Detailed help system
- Password protection
of the process data possible - User levels
- Plain teaxt error with history
- Stepless control
Compact control (standard)
- Display of the system status
- Digital belt speed indicator
- Error message with plain text display
- Standby function
+
Double-sided
continous-dryer
Detail 1
+
Double-sided
continous-dryer
Detail 2
+
Double-sided
continous-dryer
Detail 3
+
Double-sided
continous-dryer
Detail 4
+
Double-sided
continous-dryer
Detail 5
Our Technology and Sales-Partner in Electronic Industry
ahk GmbH · Gewerbering 8 - 13 · 74193 Schwaigern · Germany
Tel.: +49 (0)7138 - 81274-0 · Fax: +49 (0)7138 - 81274-10
Email: info@ahk-service.de · Internet: www.ahk-service.de
Technical Information

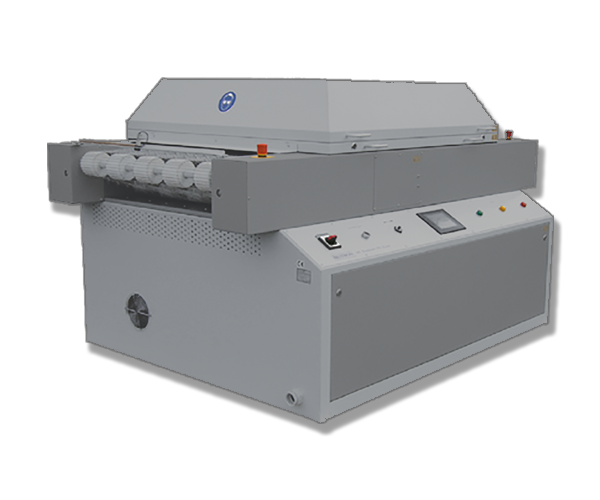

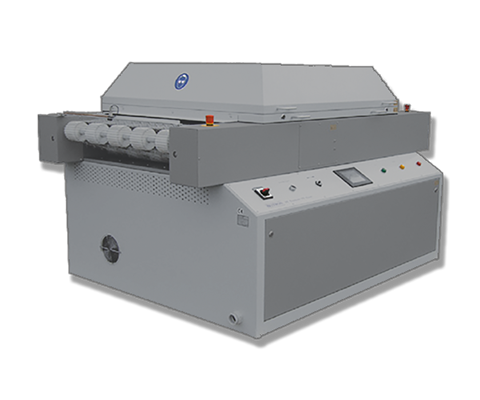

Double-Sided continous-dryer
2 Medium pressure UV lamps, 800 mm active length
1 UV lamp below and 1 UV lamp above the conveyer system
Conveyor speed:
Conveyor speed 1,0 to 6,0 m/min adjustable (others on customer‘s request).
Dimensions of PCB:
Width: 100 up to 720 mm
Length: 100 up to 760 mm
Thickness: 0,4 up to 5,0 mm
Panel warpage: max. +/- 6mm
Dimension of the machine:
Lenght: 1500 mm
Height: 1160 mm
Width: 1300 mm
Electrical supply: 400 V / 50 Hz / 3~
CE-Sign
The Double-Sided continous-dryers are used successfully in:
- electronic industry
- plastic industry
- pharmaceutical industry
- automotive industry
These are just a few examples from the various partner portfolio of Beltron.
Information
Double-Sided continous-dryer
Contactform - Double-sided contious-dryer
Advice to Double-Sided continous-dryer:
Phone: +49 6074 - 89199-0 or E-Mail: info@beltron.de
