LED-UV-Integrator

Application:

Due to its compact and flat design, the Beltron LED UV Integrator is particularly well suited for continuous flow dryers with a low throughput height. Areas of application include, for example:


- LED / UV dryer



- PCB exposures



- Copying equipment



General:

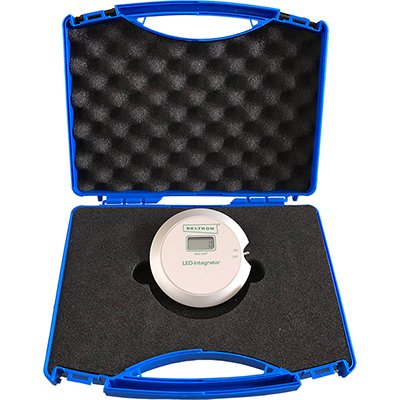

The Beltron LED UV Integrator is a high-quality measuring device for determining the UV dose. On the back of the device a UV sensor is located, which detects the LED / UV radiation. The LCD display directly reflects the measured value in millijoules per square centimeter

(mJ / cm²). The LED UV integrator is powered by a 3.6 volt lithium battery, which is located inside the device. By using particularly energy-saving circuits, the battery lasts for about 10,000 operating hours. A special filter blocks the visible as well as the IR range of the radiation

so that only the desired spectral range will be measured.











Handling:



To take a measurement, proceed as follows:



1.) Activate the LED UV integrator by pressing the toggle switch.

     An irradiation value (dose) of 0 mJ / cm² is displayed on the LCD-Display.





2.) Turn the LED UV integrator in a position that the sensor faces to the radiation source.

     Then let the integrator run under the UV source respectively allow it to illuminate for the desired time



3.) After completion of the exposure, the measuring value is shown on the display e.g. 550 mJ/cm².





4.) After completing the measurement, switch off the device via the toggle switch.

     When switching on again, the LED UV integrator is reset to "zero" for the next measurement





Please note that the housing temperature must not exceed 110 ° for 10 seconds!







Details Beltron

LED-UV Integrator:



+ LCD display



+ On / Off switch



+ Transport housing



+ Power supply: 3,6 V Lithium-Battery











 Details BELTRON
LED-UV Integrator
    Details of our
high-performance
Measuring Equipment







BELTRON LED-UV Integrator are used successfully in:


+ printing industry

+ electronic industry

+ plastic industry

+ building materials industry

+ textile industry

+ packaging industry

+ pharmaceutical industry

+ automotive industry

+ glass industry

+ engineering




Beltron Measuring Equipment have many key benefits for you and your production, take advantage of our quality benefits:

+ over 50 years quality "Made in Germany"

+ Innovative UV technology

+ Complete, even UV-curing

+ Very short curing times

+ Sustainable energy-saving systems

+ Further processing possible immediately

+ Highly scratch-resistant and shiny

+ Durable & increased chemical resistance











 advantage BELTRON
Measuring equipment

   Advantages of our
high-performance
Measuring Equipment













 applications BELTRON
LED-UV Integrator


  Uses of our
high-performance
Measuring Equipment





Technical Information

LED-UV Integrator

Detail
LED-UV Integrator

Display: 6-digit LCD-display 0 - 999999 mJ/cm²

Dimensions: 80 x 145 x 12 mm

Weight: approx 500 gr.

Switch: On / Off / automatic Off

Power supply: 3,6 V Lithium-Battery

Power consumption: 100μA (10.000 operating hours)

Casing: Aluminium casing chromium plated

Spectral measuring range: 250 - 410 nm (other ranges upon request)

The LED-UV-Integrator are used successfully in:
