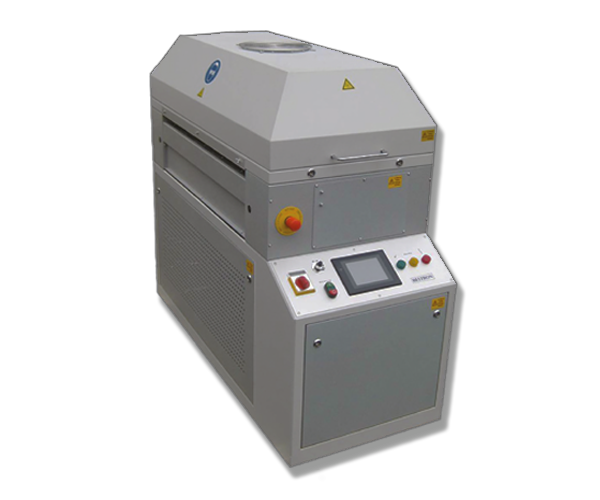

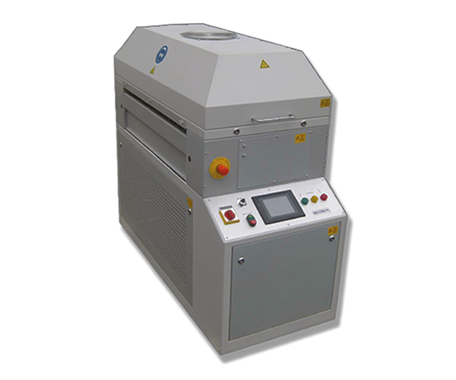

UV dryer
Slimsize
Application:
The Slimsize UV dryer is ideally suited for use in existing plants or systems and for products such as e.g. paper, cardboard, foil, film, glass, printed circuit boards, plastics, wood and metal. Due to its overall width of only 600 mm, it can be integrated into almost every plant or system concept.
A retrofitted installation is also possible without any problems.
The UV dryer is available with 1 radiant emitter at the top or as a double-sided UV dryer with 1 radiant emitter at the top and 1 radiant emitter at the bottom.
You are here: Beltron GmbH | Products | UV dryer overview | UV dryer Slimsize
Design:
Steel design in “Slimsize“ version, belt speed in a range of 2 – 20 m/minute (others according to customer request infinitely variable regulating, electronically controlled cooling system, radiant emitter power as infinitely variable regulating between 30 and 100%. Simple and quick radiant emitter replacement, aluminium lamp housing with UV radiant emitters each with 120 W/cm (others according to customer request) power, special faceted reflectors for optimum focusing of the UV rays, easy to service and maintain, exhaust fan with connection for exhaust pipe. The UV dryer can be optionally equipped with a selective filter and quartz glass panes (to reduce the product temperature) as well as a PLC control with touch screen.

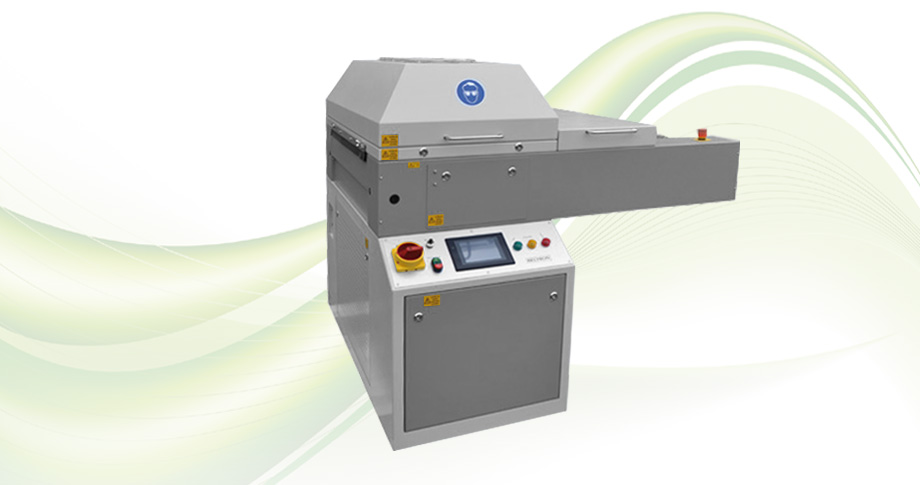

Beltron GmbH - UV dryer Slimsize - Special design with extended inlet
Details Beltron high-performance
UV dryer Slimsize:
+ cooling system
+ Lamps
+ PLC control (optional)
Details BELTRON
UV-Dryer
Slimsize Details of our
high-performance
UV-dryer Slimsize
Beltron UV dryers have many key benefits for you and your production, take advantage of our quality benefits:
+ over 55 Years quality "Made in Germany"
+ Innovative UV technology
+ Complete, even UV-curing
+ Very short curing times
+ Sustainable energy-saving systems
+ Further processing possible immediately
+ Highly scratch-resistant and shiny
+ Durable & increased chemical resistance
Beltron UV dryer Slimsize are used successfully in:
+ printing industry
+ electronic industry
+ plastic industry
+ building materials industry
+ textile industry
+ packaging industry
+ pharmaceutical industry
+ automotive industry
+ glass industry
+ engineering
advantage BELTRON
UV-Dryer
Slimsize Advantages of our
high-performance
UV-dryer Slimsize
applications BELTRON
UV-Dryer
Slimsize
Uses of our
high-performance
UV-dryer Slimsize
PLC control (optional)
Cooling system
Lamps
Cooling system
- standard
Lamps
- 2 UV lamps
1 from above and
1 from below the conveying system
PLC control (optional)
- Touchscreen with color display
clear display of the system status - Online UV power meter
- Detailed help system
- Password protection
of the process data possible - User levels
- Plain teaxt error with history
- Stepless control
+
UV dryer
Slimsize
Detail 1
+
UV dryer
Slimsize
Detail 2
+
UV dryer
Slimsize
Detail 3
+
UV dryer
Slimsize
Detail 4
Our Technology and Sales-Partner in Electronic Industry
ahk GmbH · Gewerbering 8 - 13 · 74193 Schwaigern · Germany
Tel.: +49 (0)7138 - 81274-0 · Fax: +49 (0)7138 - 81274-10
Email: info@ahk-service.de · Internet: www.ahk-service.de
Conveyor belt: Metal belt
Working width: 80 cm
Radiant emitter doping: Hg (mercury), Fe (iron) or GA (Gallium)
Number of radiant emitters: 2 UV radiant emitters (1 above, 1 below the conveyor system)
Radiant emitter power: 120 W/cm
Supply voltage: 400 V / 50 Hz / 3~
CE-Sign
The UV dryer Slimsize are used successfully in:
- printing industry
- electronic industry
- plastic industry
- building materials industry
- textile industry
These are just a few examples from the various partner portfolio of Beltron.
- packaging industry
- pharmaceutical industry
- automotive industry
- glass industry
- engineering
