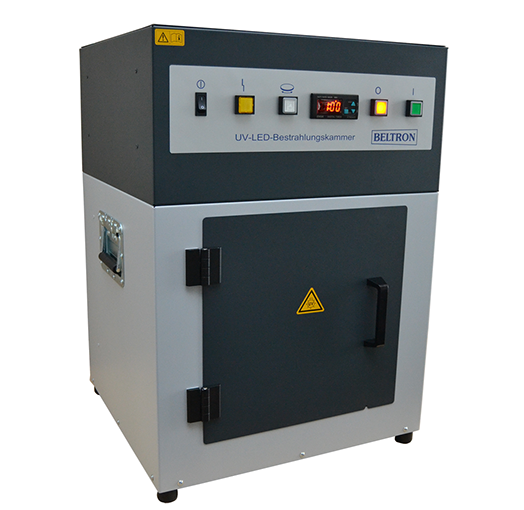

UV-LED

Irradiation chamber ULB480

Application:


The UV-LED Irradiation Chamber is suitable for curing UV-reactive materials such as inks, lacquers, adhesives and casting compounds. Due to its completely mirrored irradiation chamber, four integrated UV-LED lamps (three on the side walls, one from top) and the switchable turntable, the UV-LED irradiation chamber ensures a homogeneous irradiation of your products. Thus, the device can be used both in the production and in the laboratory for production or repair or similar purposes.


Beltron UV dryers have many key benefits for you and your production, take advantage of our quality benefits:

+ over 50 years quality "Made in Germany"

+ Innovative UV technology

+ Complete, even UV-curing

+ Very short curing times

+ Sustainable energy-saving systems

+ Further processing possible immediately

+ Highly scratch-resistant and shiny

+ Durable & increased chemical resistance





Details Beltron
LED-UV Irradiation chamber ULB480



+ UV-LED Irradiation chamber ULB480



+ Automatic cooling system for an optimal of cooling of the UV-LED’s.



+ Frontplate with Start/ Stopp-Button, digital timer, Pre-selection switch turntable  on/off, disruption signal and power swich.



+ Ventilated irradiation room.





Beltron LED-UV Irradiation chamber ULB480  are used successfully in:


+ electronic industry

+ plastic industry

+ pharmaceutical industry

+ automotive industry













 advantage BELTRON
UV-LED
Irradiation chamber
ULB 480
  Advantages of our
high-performance
UV-LED Irradiation chamber













 applications BELTRON
UV-LED
Irradiation chamber
ULB 480

 Uses of our
high-performance
UV-LED Irradiation chamber













 Details BELTRON
UV-LED
Irradiation chamber
ULB 480
  Details of our
high-performance
UV-LED Irradiation chamber





Detail

UV-LED Irradiation chamber ULB480

Technical Information

UV-LED Irradiation chamber ULB480

  • Automatic cooling system for an optimal of cooling of the UV-LED’s.

  • Frontplate with Start/ Stop-Button, digital timer, Pre-selection switch turntable on/off, disruption signal and power switch.

  • Ventilated irradiation room.

  • Additional removable mirrored Shelf. Can be inserted at 3 different heights (without turning function)..

  • Removable, easy to clean glass panels to protect the UV-LED lamps.

  • High working safety due to automatic switch-off of the UV-LED's when the door is open.

  • Solid folding handles for easy transport

  • Optional exhaust air connection for the extraction of process heat. For exhaust air hose nominal diameter 60 mm.

  • Energy saving.



Electrical Data

UV-LED Irradiation chamber ULB480

Mains Supply voltage:

Power consumption:


Mains fuse (in the panel mounting device plug):

Power cable:

Surrounding temperature:

Exposure time:

Signal tone:





UV–LED:

Refrigeration:

Electrical power:

Available wavelength ranges:



Accessories:

UV-LED Integrator:

230V/ 50Hz (1~/ N / PE)

 +/- 10%

 Maximal 590 W

Standby 7W

T10A

Length 1,5 m

15 – 35°C

Adjustable in minutes/ seconds | Max. 30 minutes

Switchable signal tone / beep at the end of the exposure








Air-cooled

480 W

365 nm, 385 nm, 395 nm, 405 nm | Please ask for other wavelengths






After completion of the exposure, the measured value can be read
on the display in mJ/cm².

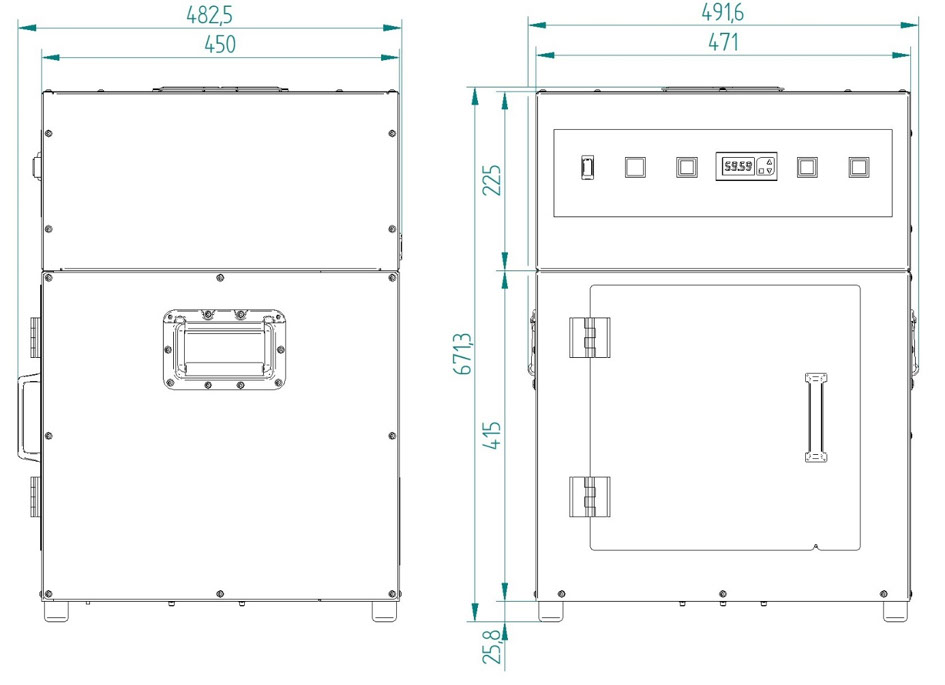

Dimensions

UV-LED Irradiation chamber ULB480

Door cutout:


Irradiation room:





Shelf:




Weight:



Turn table:





Width310 mm

Height 313 mm



Width 320 mm

Height 340 mm

Depth 320 mm



Width 315 mm

Depth  300 mm



39 kg



Diameter 280 mm

Maximum centric load 10 kg

Rotations 2,5 rpm

Clockwise direction of rotation
