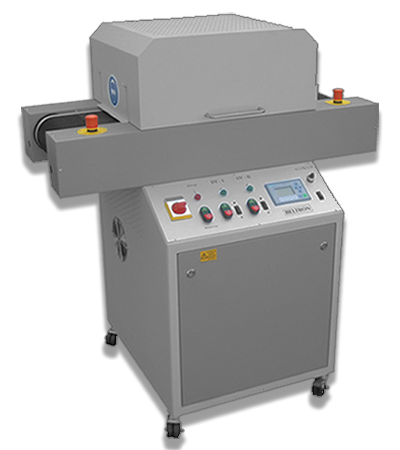

For drying and polymerisation of UV hardening, dyes, inks, coatings and adhesives, for printed circuit boards, laminated materials, plastics, paper, glass, metals and other printing materials in a continuous process.
The lamp output is 120 W/cm (others according to customer request) and the devices are equipped with 1 or 2 UV lamps. The systems are mainly utilised in the laboratory or in small series production.
Conveyor belt (PTFE-coated) with maintenance-free, infinitely variable belt drive from 0.5-12 m/minute (others according to customer request), belt width 220 mm, 1 or 2 UV medium pressure lamps, aluminium faceted reflectors or on request with selective filters for heat reduction, entire radiant emitting unit height adjustable, castors or fixed feet, clear passage height for different material thicknesses adjustable from 20 to 100 mm, working height of the conveyor belt according to SMEMA, adjustable with fixed feet from 900 to 950 mm and suction fan/cooling fan.
Compact control with LCD screen, display of various operating parameters such as UV setpoint, operating hours, lamp voltage. The control system continues to monitor: Radiant emitter ignition, radiant emitter fuses, overrun, excess temperature, exhaust air, frequency converter. Supply voltage: 400V (other voltage according to customer request).
Details Beltron high-performance
UV dryer BE 20:
+ Conveyor belt
+ Light source
+ PLC control (optional)
+ Compact control (standard)
BELTRON UV dryer BE 20 are used successfully in:
+ printing industry
+ electronic industry
+ plastic industry
+ building materials industry
+ textile industry
+ packaging industry
+ pharmaceutical industry
+ automotive industry
+ glass industry
Beltron UV dryers have many key benefits for you and your production, take advantage of our quality benefits:
+ Over 50 years of quality "Made in Germany"
+ Innovative UV technology
+ Complete, uniform UV hardening
+ Very short hardening times
+ Sustainable energy saving systems
+ Additional processing immediately possible
+ Highly scratch-resistant and glossy
+ Durable & increased chemical resistance
Tranport belt: Teflon belt or metal belt
Control: Compact control - Option: PLC control
Bulb: 1 or 2 UV lamps
Bulb filling: Hg (mercury), Fe (Iron) oder Ga (Gallium)
Bulb power: 80 - 120 W/cm
Working height: 900 to 950 mm
Electrical supply: 400 V / 50 Hz / 3~
The UV dryer BE 20 are used successfully in:
These are just a few examples from the various partner portfolio of Beltron.
